MINOTAIR THERMODYNAMIC AIR EXCHANGER
The #1 choice for passive homes!

Made to withstand the rigors of the Canadian climate (hot humid summers & polar winters) the MINOTAIR Multifunction Air Exchanger is an innovative device used to control the ventilation, temperature and humidity of your house.

In addition, it filters, dehumidifies,heats, cools and renews the air to provide a healthy and comfortable environment all year round.

Minotair Multifunction Air Exchanger
PENTACARE V12
80 to 250 cfm (1.0 in WG),
40 to 120 l/s (250 Pa)

The MINOTAIR is a multifunction unit:

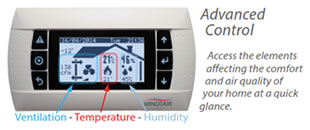

• Advanced Control System
• Ultra efficient Air Exchanger
• Air Purifier with HEPA filtration and ionization
• Self-contained Heat Pump
• Dehumidifier - without overheating!

Air Exchanger Mode:

• Filters air while removing pollutants from the house, andoxygenates inside air with fresh air from outside.
• Dehumidifies and cools air in the summer.
• Dehumidifies and recovers heat in the winter.
• Can also humidify when connected to a humidifier.
• Offsets most of the ventilation costs for a high energy balance

Heat Pump Mode:

• Dehumidifies and cools air in summer, and heats air in winter.
• Filters air while providing uniform humidity and temperature conditions.
• Can also humidify when connected to a humidifier.
• Offsets most of the ventilation costs for a high energy balance

Recirculation Mode:

• Filters air while providing uniform humidity and temperatureconditions.
• Consumes very little energy.

Intermittent Modes 20 - 30 - 40:

• Operates in air exchanger mode for 20, 30 or 40 minutes each hour.
• Based on your choice, switches to recirculation mode or heat pump mode the remaining time and so on.

Smart Mode:

• Prioritizes air exchange mode.
• Switches to heat pump mode during calls for heat or cooling.
• Goes into recirculation mode when weather conditions are unsuitable for air exchanger or heat pump modes.

Features:

• High end device of robust construction made of durable materials such as copper and aluminum.
• Integrates the control of your house’s central heating unit, including ventilation, cooling and humidification forharmonized operations and maximum efficiency
• Innovative motorized damper permitting several operating modes suc as air exchanger, heat pump, recirculation.
• A self-contained design requiring no installation of outdoor equipment for greater aesthetics and unparalleled ease ofinstalation and maintenance.
• The air exchanger provides precise ventilation tailored to thespecific needs of your house and its occupants. Also preventsconditions of under-ventilation and over-ventilation.
• In addition to standard antimicrobial filters, the air purifierprovides optional HEPA and activated carbon filtration, andan ion generator for unsurpassed air quality.
• The heat pump heats and cools, as needed, to maximize comfort and savings.
• The dehumidifier removes excess moisture withoutrejecting heat in the house unlike other devices.
• Automatic calibration of supply and exhaust airflows based on air density and gradual clogging of filters and intake grilles. Airflows remain constantly balanced!
• Dynamic defrosting for trouble free winter operations and optimum heat recovery.
• Automatic humidity adjustment system for frost free windows during cold winter days.
• Free Cooling: can cool the house with outside air during cool nights without starting the compressor.
• Fast 32-bit, 50 MHz and USB-programmable microcontroller
  to benefit from the latest features and revisions.
• Possibility to connect up to 2 digital controls per device. Install one on each floor for total control!

Warranty:

The MINOTAIR PENTACARE V12 is backed by a limited five year arranty on parts, with original proof of purchase.

FOR REPLACEMENT FILTERS go to: AirFiltration.ca



• © 2020 AirXsolution
  Products and specs are subject to change without notice
